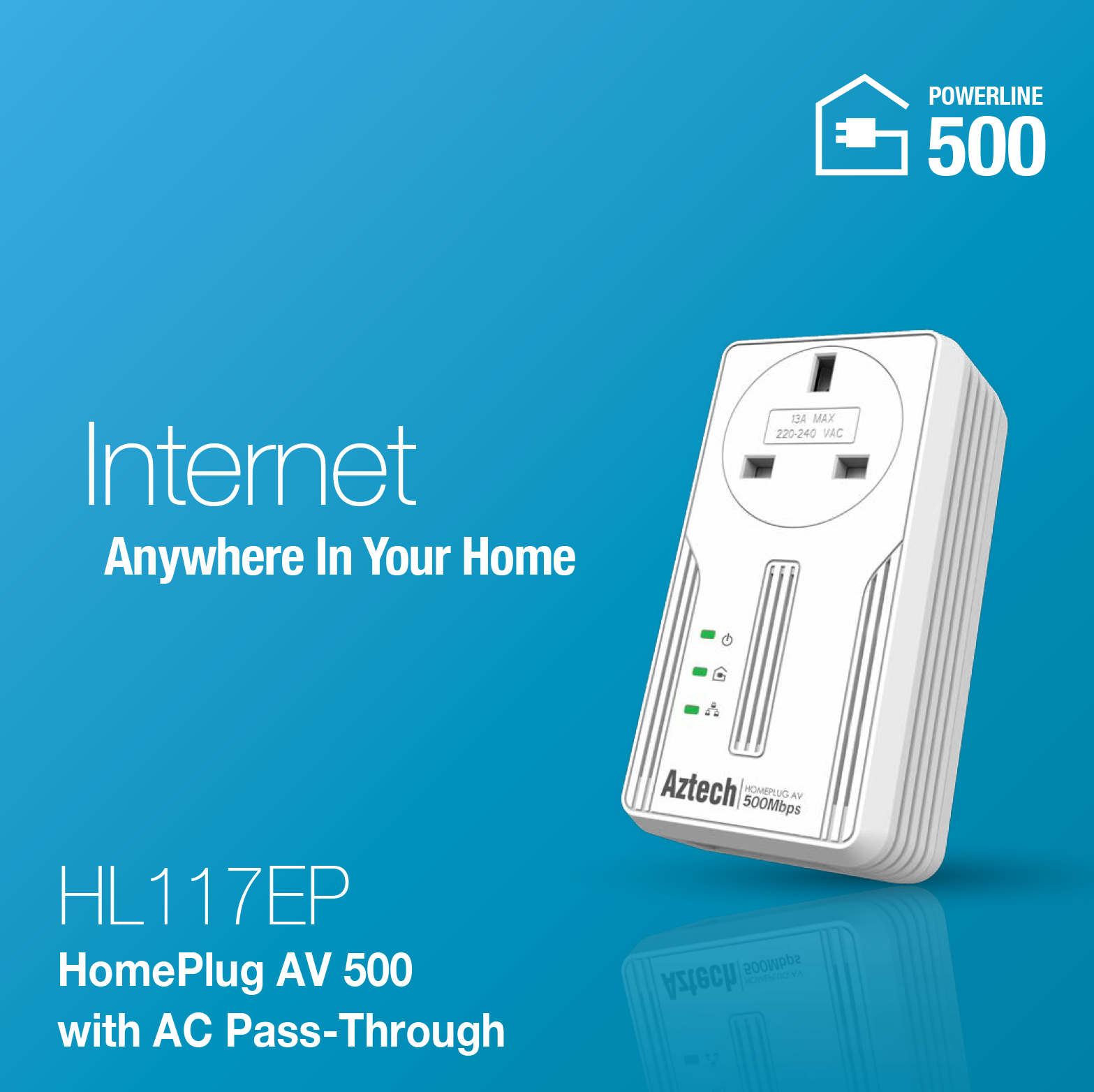

Aztech HomePlug AV 500Mbps Ethernet Adapter with Pass Through (HL117EP)

Embarking on a concept of No New Wires® data communications, Aztech HL117EP transforms your in-house powerline into a networking infrastructure. Thus it successfully reduces "dead spot" and increases network coverage within your home.
  • Data transfer rate up to 500Mbps
  • Best use with Fibre Broadband
  • Noise-filtered pass-through power outlet
  • 2-Port Ethernet Adapter
  • Plug and Play
No reviews yet Write a Review
Out Stock
Was: $32.00
Now: $27.90

Add An Extra Option

Selected: Aztech HomePlug AV 500Mbps Ethernet Adapter with Pass Through (HL117EP)

Was: $32.00
Now: $27.90
Performance and Convenience in HomePlug AV 500Mbps
HL117EP HomePlug engine is a Qualcomm Atheros AR7420 chipset. It features faster processing power, two Fast Ethernet host interfaces and an enhanced analog front end. The solution is compliance with IEEE1901 and Homeplug AV, hence allowing hassle free compatibility with existing Homeplug AV devices and other suppliers of IEEE1901 PLC (Powerline Line Communication) devices.

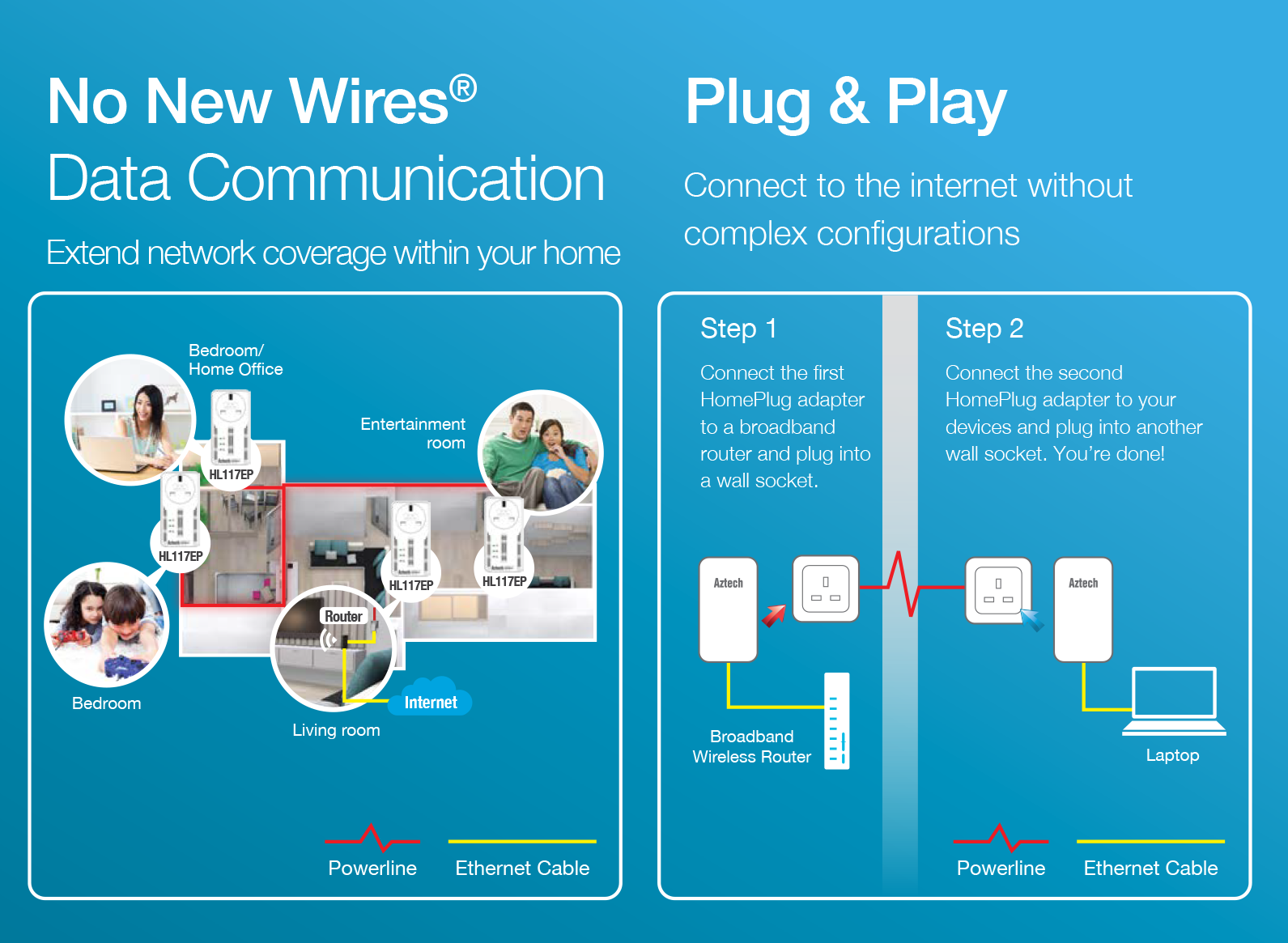

Connect every Ethernet device possible – no new wires, no drilling and no hassle!
Embarking on HomePlug technology - a concept of No New Wires® data communications, Aztech HomePlug transforms your in-house powerline into a networking infrastructure. Thus it successfully reduces ""dead spot"" and increases network coverage within your home.Enhanced Quality of Service (QOS) also provides the guaranteed bandwidth reservations for multimedia payloads including TV over IP (IPTV), higher data rate broadband sharing, Online-Gaming, VoIP Calls, extending Wireless LANs coverage, Audio-Video transmission across the network as well as Network camera connectivity.
Fuss-free Set-up with Simple Connect
No configuration or software is required to pair Aztech HomePlugs. The ""Simple Connect"" button doubles as a security feature supported with 128-bit AES Hardware encryption, ensuring the network communications is free from eavesdroppers and hackers.
Noise-filtered pass-through power outlet
The embedded pass through electricity socket ensures that the user does not lose a wall socket, as well as it provides an AC filtering circuit to ensure that the HL117EP is isolated from locally generated AC noise sources connected to the socket.

Standards IEEE 1901/HomePlug AV Compliant
Co- existence with HomePlug 1.0 Nodes
Compliant to EuP requirements
IEEE 802.3 10/100 Ethernet
IEEE 802.3az support
Data Transfer Rate Up to 500Mbps over powerline
Modulation Support OFDM 4096
OFDM 1024
OFDM 256
Frequency Band 2MHz to 68MHz band
Quality of Service (QoS) Priority-based CSMA/CA channel access schemes maximize efficiency and throughput
Integrated Quality of Service (QoS) Enhancements
Hardware Packet Classifiers for ToS, CoS and IP Port Number
Supports IGMP managed multicast session
Diagnostic and Management Interface Homeplug AV generic and vendor specific Management Message Entries (MME)
Security Support 128-bit AES Link Encryption with key management
Memory SPI Flash : 2 MB
AC Pass Through Power Socket Current Rating: 13A max (UK), 16A max (DEU), 10A max (AUS)
Hardware Qualcomm Atheros AR7420 + AR1540 chipset
Platform Support OS Independent with TCP/IP protocol installed
Power Supply Switch Mode 220V-240V Supply for Europe/UK/AUS plugs
LED Indicators 1 x Power LED (Green color)
1 x Powerline Link/Activity Status LED (Bicolor)
1 x Ethernet Link/Activity Status LED (Green color)
External Connectors 1 x Electrical Power plugs
2 x RJ45 for 10/100 Ethernet
Push Button/Switch 1 x Configuration Push Button (for Simple Connect and Factory Default Reset)
Resin/Plastic Casing Polycarbonate
FR rating UL94-V0
Dimension 116(H) mm x 62(W) mm x 42(D) mm
Weight 200g
Power Consumption 2.0 Watt (230Vac)
Operating System Windows 98SE
Windows 2000
Windows ME
Windows XP 32bit
Windows Vista 32bit
Windows 7 (32/64-bit)
Temperature Operating : 0° to 40° Celsius, 32° to 104° Fahrenheit
Non-Operating : -25 ° to 70° Celsius, -13 ° to 158 ° Fahrenheit
Humidity Operating : 30% to 80% Relative Humidity (Non-Condensing)
Non-Operating : 30% to 95% Relative Humidity (Non-Condensing)
