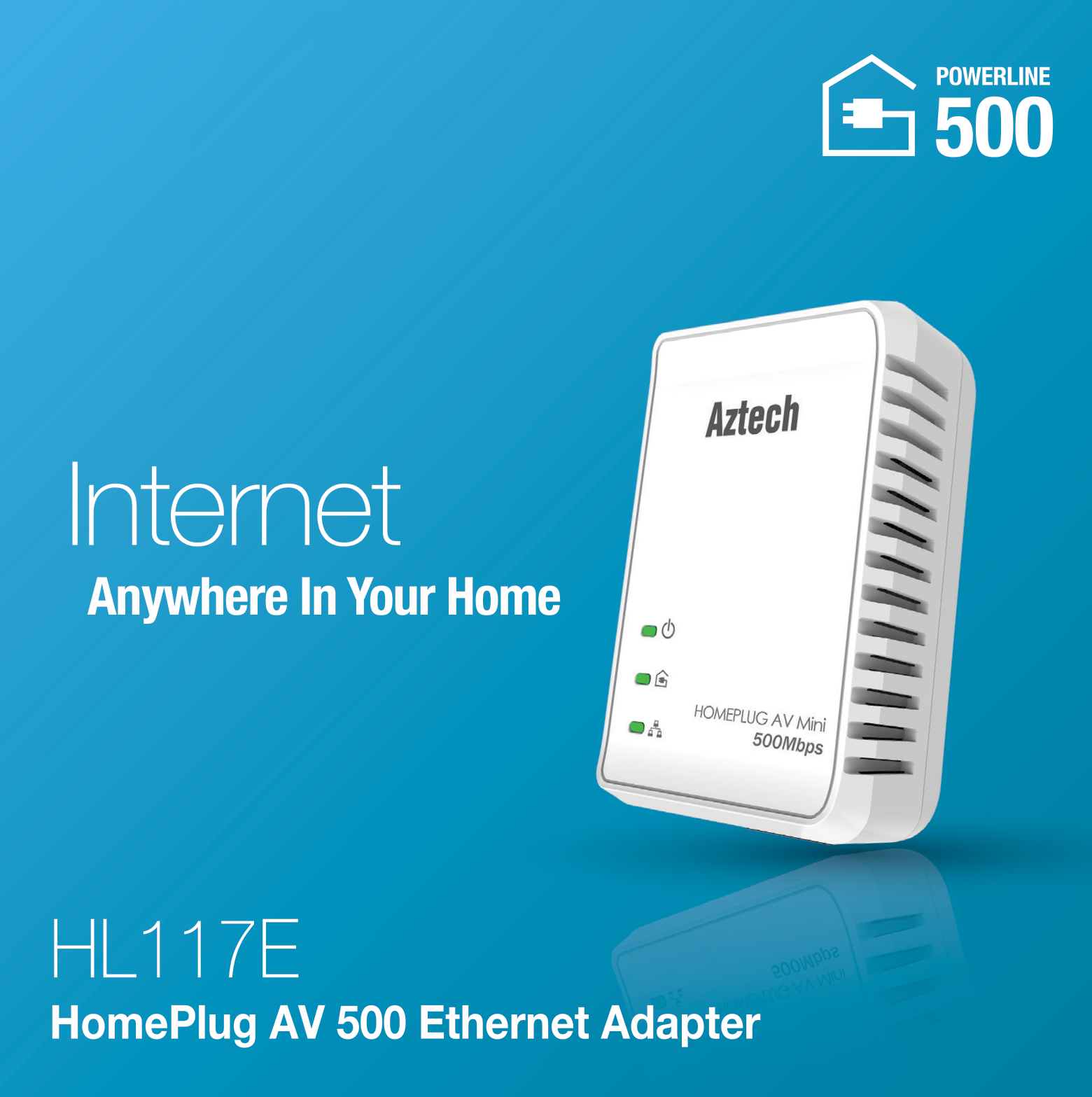

Aztech HomePlug AV 500Mbps Ethernet Adapter (HL117E)
Embarking on a concept of No New Wires® data communications, Aztech HL117E transforms your in-house powerline into a networking infrastructure. Thus it successfully reduces "dead spot" and increases network coverage within your home.
- Data transfer rate up to 500Mbps
- Best use with Fibre Broadband
- Plug and Play
Out Stock
- SKU:
- H88-D90081-A42
$29.00
Selected: Aztech HomePlug AV 500Mbps Ethernet Adapter (HL117E)
$29.00
Aztech HL117E extends Internet access through powerline, thus providing a fast and reliable cable-free solution to extend Internet access of up to 500Mbps. With a ""Simple Connect"" button, Aztech HL117E allows users an easy and hassle-free set up without configuration or software required. In addition, it is supported with 128-bit AES Hardware encryption, which ensures that the network communications is secure and free from eavesdroppers
Connect every Ethernet device possible – no new wires, no drilling and no hassle!

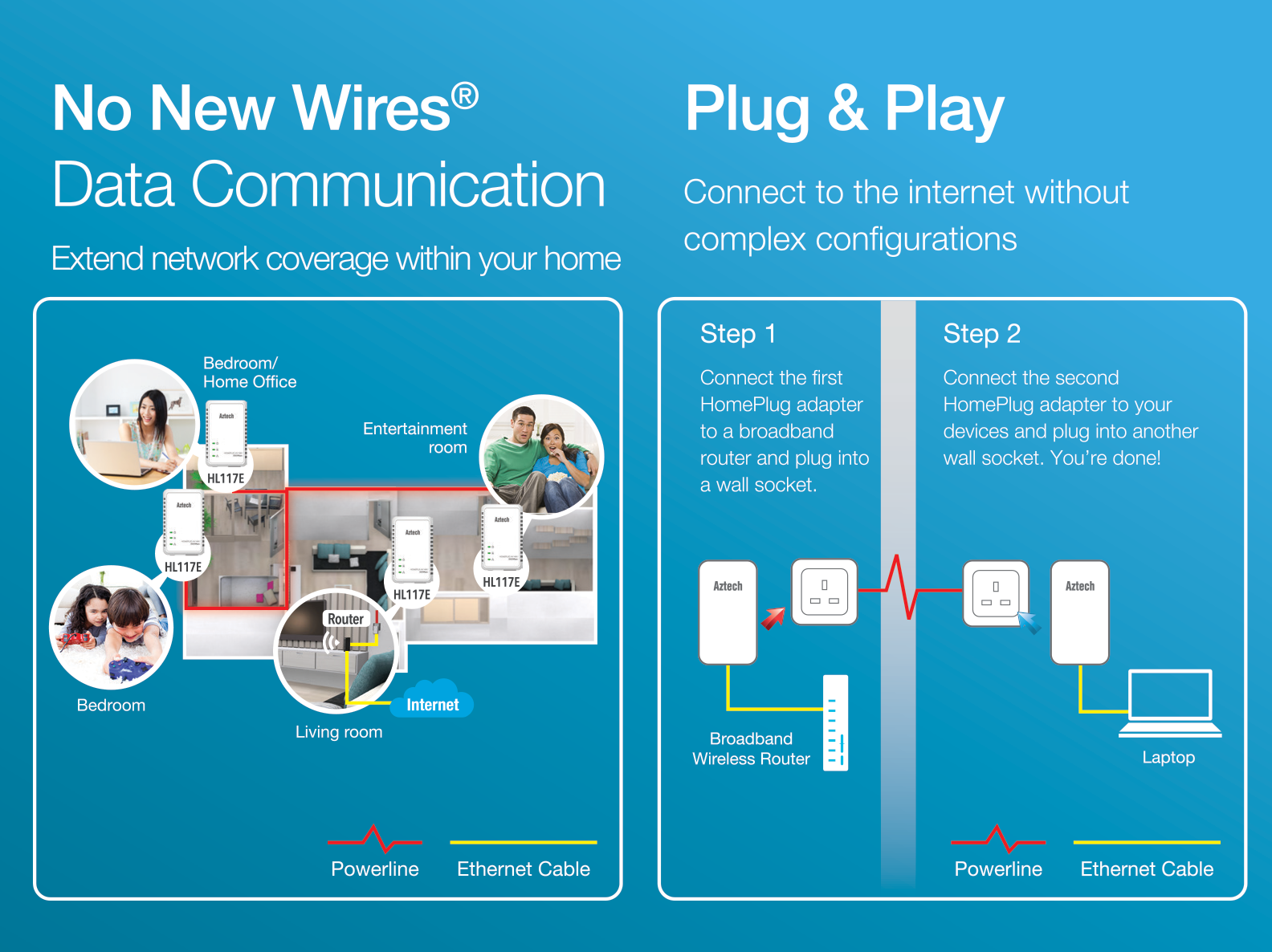

Embarking on HomePlug technology - a concept of No New Wires® data communications, Aztech HomePlug transforms your in-house powerline into a networking infrastructure. Thus it successfully reduces ""dead spot"" and increases network coverage within your home.
Fuss-free Set-up with Simple Connect
No configuration or software is required to pair Aztech HomePlugs. The ""Simple Connect"" button doubles as a security feature supported with 128-bit AES Hardware encryption, ensuring the network communications is free from eavesdroppers and hackers.
Specifications
| Standards | Powerline : HomePlug AV Ethernet : IEEE 802.3 10/100 Ethernet (1Gbps) Energy Saving: EuP Compliance |
|---|---|
| Protocols | CSMA/CA over powerline in your home |
| Modulation Support | OFDM 4096 OFDM 1024 OFDM 256 OFDM 64 OFDM 16 OFDM 8-QAM QPSK BPSK ROBO |
| Data Transfer Rate | Up to 500Mbps over powerline |
| Range | Up to 200m over powerline |
| Hardware | Atheros AR7420 + AR1500 chipset |
| Power Supply | Switch Mode 220V-240V Supply for Europe/ France/Germany/UK plugs |
| LED Indicators | 1 x Power LED (Bicolor) 1 x Powerline Link/Activity Status LED (Bicolor) 1 x Ethernet Link/Activity Status LED (Bicolor) |
| External Connectors | 1 x Electrical Power plugs 1 x RJ45 for 10/100/1000 Ethernet (AutoMDI/MDI-X) 1 x AC Pass-Through Power Socket |
| Push Button/Switch | 1 x Configuration Push Button (for Simple Connect and Factory Default Reset) |
| Resin/Plastic Casing | Polycarbonate FR rating UL94-V0 |
| Dimension | 62mm x 116mm x 42mm |
| Weight | 200g |
| Power Consumption | Normal: 4.5 Watt (230Vac) Power save: 0.44 Watt Average |
| Operating System | Windows 98SE Windows 2000 Windows ME Windows XP Windows Vista 32bit Windows 7 (32/64-bit) |
| Temperature | Operating : 0° to 40° Celsius, 32° to 104° Fahrenheit Non-Operating : -25 ° to 70° Celsius, -13 ° to 158 ° Fahrenheit |
| Humidity | Operating : 30% to 80% Relative Humidity (Non-Condensing) Non-Operating : 30% to 95% Relative Humidity (Non-Condensing) |
| Regulatory Approvals | Asia Pacific/Europe : CE, IEC60950, IDA |
