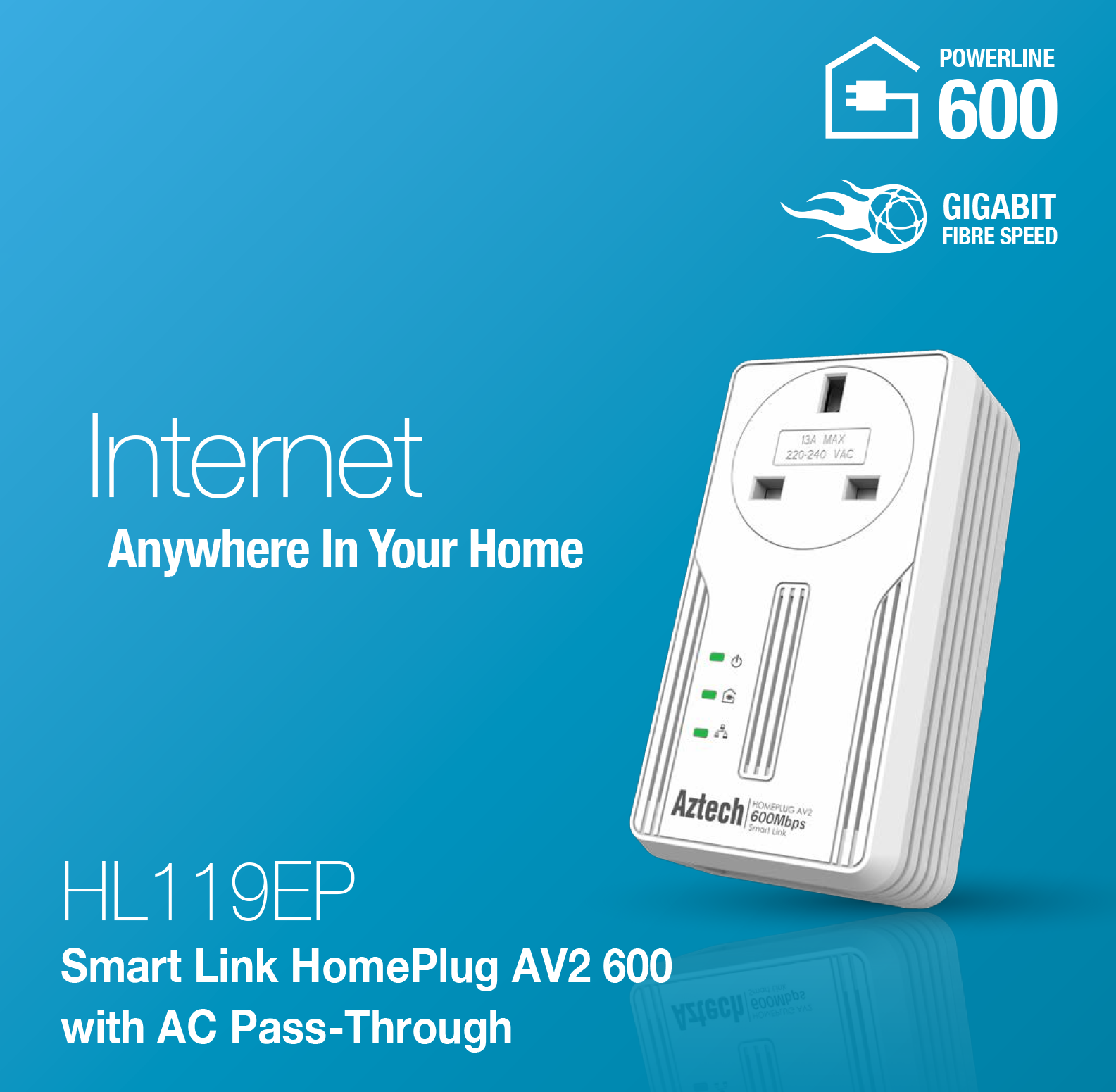

Aztech Smart Link HomePlug AV2 600Mbps with AC Pass-Through (HL119EP)

Embarking on a concept of No New Wires® data communications, Aztech HL119EP transforms your in-house powerline into a networking infrastructure. Thus it successfully reduces "dead spot" and increases network coverage within your home.
  • Data transfer rate up to 600Mbps
  • Gigabit Ethernet port
  • SmartLink technology
  • Noise-filtered pass-through power outlet
  • Advanced Green Power saving modes
  • Enhanced Quality of Service
No reviews yet Write a Review
Out Stock
SKU:
H88-D93061-A42
Was: $35.00
Now: $28.90

Add An Extra Option

Selected: Aztech Smart Link HomePlug AV2 600Mbps with AC Pass-Through (HL119EP)

Was: $35.00
Now: $28.90
The Aztech HL119EP Smart Link HomePlug AV2 600Mbps AC Pass-Thru Ethernet Adaptor embarks on a concept of No New Wires® data communications, and it transforms your in-house powerline into a networking infrastructure. It provides SmartLink Plus coupling to the Line-Neutral pair and the Line-Ground pair of the AC mains. It successfully reduce "dead spot", increase throughput and increase network coverage within a home. Surf the Internet and share data at the speed up to 1Gbps PHY rates through powerline, in any outdoor environment and rest assured with the best security from eavesdroppers through encryption on the power circuit.

HL119EP Smart Link HomePlug engine is a Qualcomm Atheros QCA7450 chipset and AR1540 AFE. It features faster processing power, Fast Ethernet host interfaces and an enhanced analog front end. The solution is compliance with IEEE1901 , Homeplug AV and Homeplug AV2, hence allowing hassle free compatibility with existing Homeplug AV devices and other suppliers of IEEE1901 PLC (Powerline Line Communication) devices.

Enhanced Quality of Service (QOS) also provides the guaranteed bandwidth reservations for multimedia payloads including TV over IP (IPTV), higher data rate broadband sharing, Online-Gaming, VoIP Calls, extending Wireless LANs coverage, Printer and peripheral sharing, Audio-Video transmission across the network as well as Network camera connectivity.

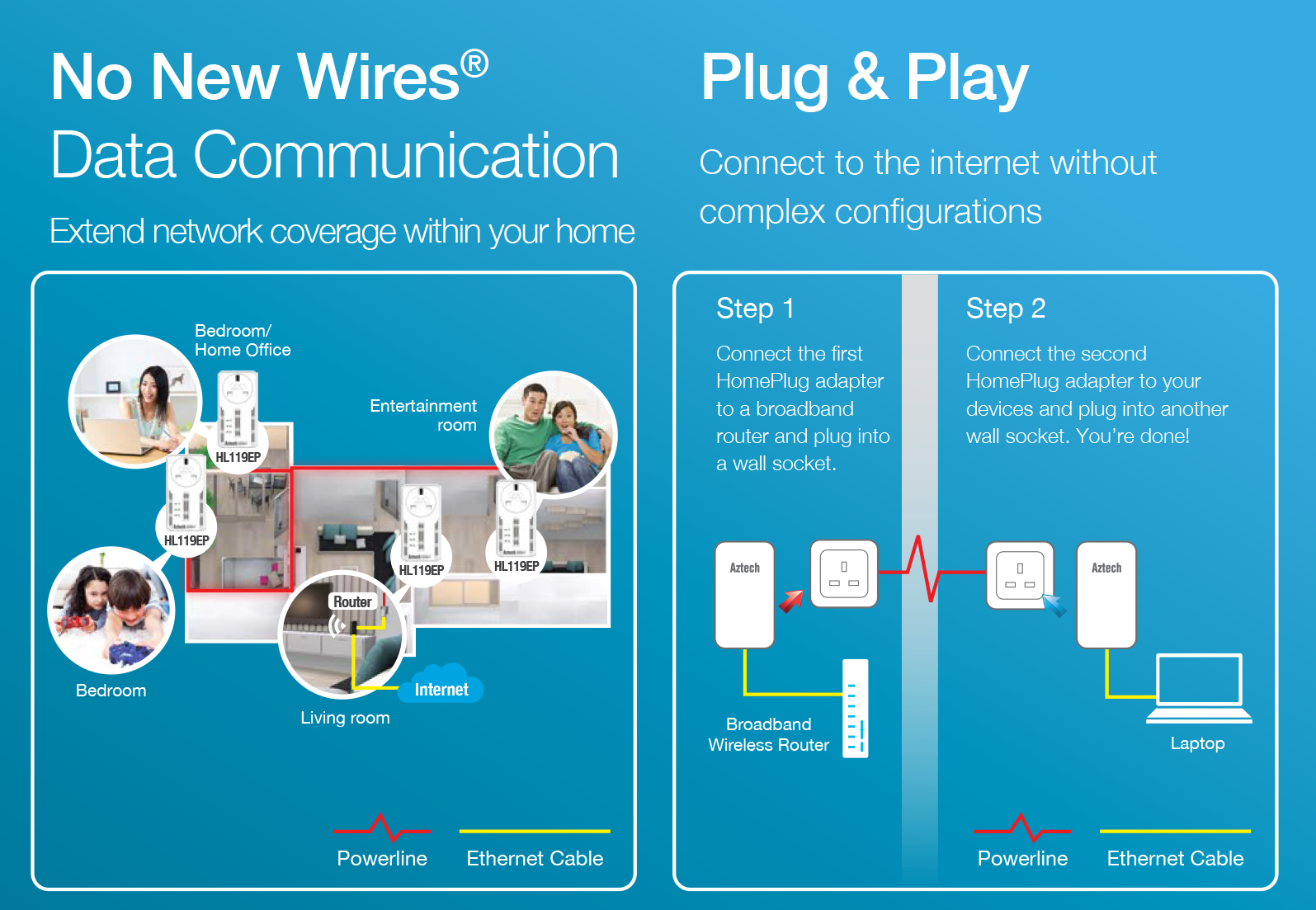

Fuss-free Set-up with Simple Connect
No configuration or software is required to pair Aztech HomePlugs. The ""Simple Connect"" button doubles as a security feature supported with 128-bit AES Hardware encryption, ensuring the network communications is free from eavesdroppers and hackers.
Noise-filtered pass-through power outlet
The embedded pass through electricity socket ensures that the user does not lose a wall socket, as well as it provides an AC filtering circuit to ensure that the HL113EP is isolated from locally generated AC noise sources connected to the socket.

Specifications
Standards EEE 1901/HomePlug AV Compliant
Co- existence with HomePlug 1.0 Nodes
Compliant to EuP requirements
IEEE 802.3 10/100 Ethernet
IEEE 802.3az support
Data Transfer Rate Up to 600Mbps over powerline
Modulation Support OFDM 4096
OFDM 1024
OFDM 256
OFDM 64
OFDM 16
OFDM 8-QAM
QPSK
BPSK
ROBO
Frequency Band 2MHz to 68MHz band
Quality of Service (QoS) Priority-based CSMA/CA channel access schemes maximize efficiency and throughput
Integrated Quality of Service (QoS) Enhancements
Hardware Packet Classifiers for ToS, CoS and IP Port Number
Supports IGMP managed multicast session
Diagnostic and Management Interface Homeplug AV generic and vendor specific Management Message Entries (MME)
Security Support 128-bit AES Link Encryption with key management
Noise Filtering Frequency band 2MHz to 68MHz (TBD)
Filter characteristics : -25dB to -45dB (TBD)
Memory SPI Flash : 2 MB
AC Pass Through Power Socket Current Rating: 13A max (UK), 16A max (DEU), 10A max (AUS)
Hardware Qualcomm Atheros AR7450 + AR1540 chipset
Platform Support OS Independent with TCP/IP protocol installed
Power Supply Switch Mode 85VAC to 265VAC Supply for UK/US 3-pin plugs
LED Indicators 1 x Power LED (Green color)
1 x Powerline Link/Activity Status LED (Bicolor)
1 x Ethernet Link/Activity Status LED (Green color)
Physical 1 x Electrical Power plugs
1 x RJ45 for 10/100/1000 Ethernet Push
1 x Simple Connect Push Button (Set up network password automatically)
1 x Factory Default Reset Button
Resin/Plastic Casing
Polycarbonate
FR rating UL94-V0
116(H) mm x 62(W) mm x 42(D) mm
210g
Power Consumption 4.5 Watt
Operating System Windows 98S
Windows 2000
Windows ME
Windows XP 32bit
Windows Vista 32bit
Windows 7 (32/64-bit)
Windows 8
Temperature Operating : 0° to 40° Celsius, 32° to 104° Fahrenheit
Non-Operating : -25 ° to 70° Celsius, -13 ° to 158 ° Fahrenheit
Humidity Operating : 30% to 80% Relative Humidity (Non-Condensing)
Non-Operating : 30% to 95% Relative Humidity (Non-Condensing)
Modulation Support OFDM 4096
OFDM 1024
OFDM 256
OFDM 64
OFDM 16
OFDM 8-QAM
QPSK
BPSK
ROBO
Frequency Band 2MHz to 68MHz band
Quality of Service (QoS) TDMA channel access with Contention–Free and Contention-Based (CSMA/CA) period
Channel Adaptation ensures that signal integrity is maintained even under harsh noise environment
Four Level prioritized random access method based on contention access and multi-segment
Hardware VLAN, ToS and CoS Packet Classifier and IP Port Number
Supports IGMP managed multicast session
Quasi Error Free Delivery for IPTV service
Hardware Atheros AR7400 + AR8327 chipset
Power Supply Switch Mode 100V-240V AC-DC Supply
LED Indicators 1 x Bicolor Power LED
1 x Bicolor Powerline Link/Activity Status LED
4 x Bicolor Ethernet Link/Activity Status LED
External Connectors 1 x Electrical 100V-240VAC C-8 Power Jack
4 x RJ45 Gigabit Ethernet Port (AutoMDI/MDI-X)
Operating System Windows 98SE
Windows 2000
Windows ME
Windows XP 32bit
Windows Vista
Windows 7
Push Button 1 x Simple Connect Push Button (Set up network password automatically)
1 x Factory Default Reset Button
Weight 200g/unit
Power Consumption 7 Watt (Operating)
5 Watt ( Home Plug off#)
Environmental Operating : 0°C to 40°C; 30% to 80% Relative Humidity
Non-operating : -25°C to 70°C; 30% to 95% Relative Humidity
